Input Password Counter Bank Keypad Plastic Usb Interface With Display

Name: Input Password Counter Bank Keypad Plastic Usb Interface With Display
Brand: guangzhi
Price: 1 USD

Input Password Counter Bank Keypad Plastic Usb Interface With Display Manufactures

Brand Name : guangzhi

Model Number : GZ-H001053

Certification : CE、FCC、RoHS

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T, Paypal

Supply Ability : 100000pcs

Delivery Time : 10-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.

Connection : 4-core aviation connector

Material : ABS

Interface : USB

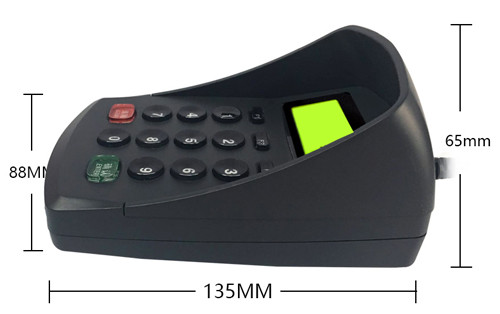

Size : 135*88*65mm

warranty : 1Year

Contact Now

Password keyboard name: plastic numeric keyboard with screen (desktop)

Keyboard model: GZ-H001053

**Plastic keyboard size: 1358865mm**

Product description of keyboard with screen: The bank password keypad solves a series of software and hardware incompatibility problems caused by various types of terminals and inconsistent driver interface programs in banks. It can be connected with PC computer and STAR series terminal, GW series terminal, WYSE terminal, Newland terminal, Guoguang terminal, Haiwei terminal, Zizhen terminal and other major terminal manufacturers at home and abroad. Different cables can be matched according to user needs to suit various terminal requirements.

main feature:

1. Frosted plastic material, beautiful appearance, keyboard has anti-peeping mask.

2. Customize any key surface in multiple languages to adapt to different countries and various customized styles.

3. Simple installation, plug and play, can provide PS2, USB, R232 interface to connect the host for keyboard operation.

Mechanical parameters:

1. Keys: digital keys and five function keys, imported frosted plastic PVC material.

2. Button font: plastic button

3. Button size: 13.5mm*10mm, 12mm

4. Button travel: 0.5mm

5. Button life: operate more than 2 million times / each button, using imported micro switch material.

6. Button strength: 1.2N+/-0.1N (contact force);

Electrical parameters:

1. Working voltage: DC +5V+/-5%

2. Working current: 20mA

3. Expected service life: > 2 years

4. Key switch technology: plastic keys

5. Interface technology: USB, PS2, R232

6. Operating system: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx

Environmental adaptability:

1. Working temperature: -20℃to+60℃

2. Storage temperature: -30℃to+70℃

3. Relative humidity: 30-90%

key-value table:

key	Standard ASCII	key	Standard ASCII
0	0x30	6	0x36
1	0x31	7	0x37
2	0x32	8	0x38
3	0x33	9	0x39
4	0x34	ENTER	0x0d
5	0x35	CLEAR	0x08

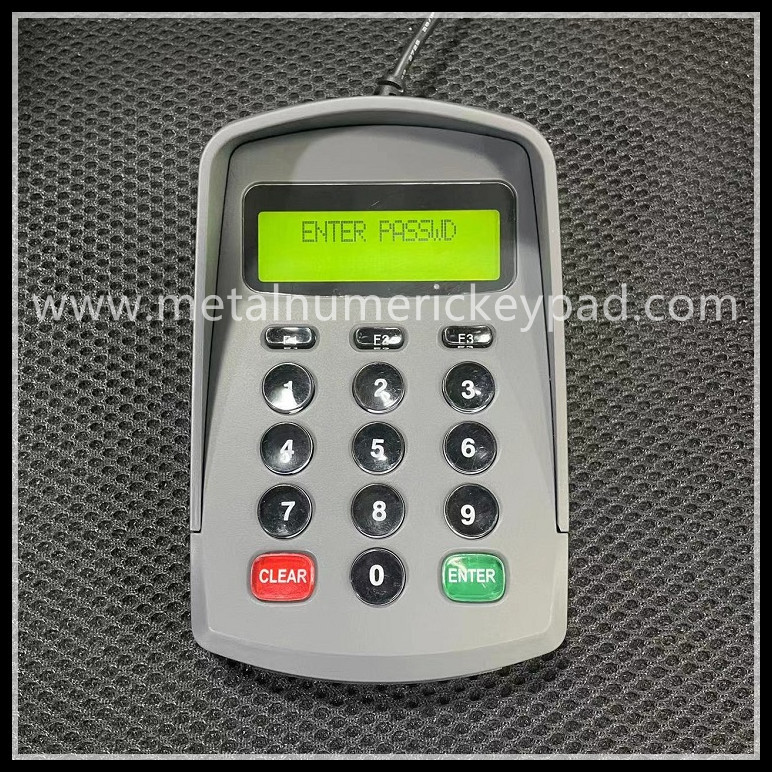

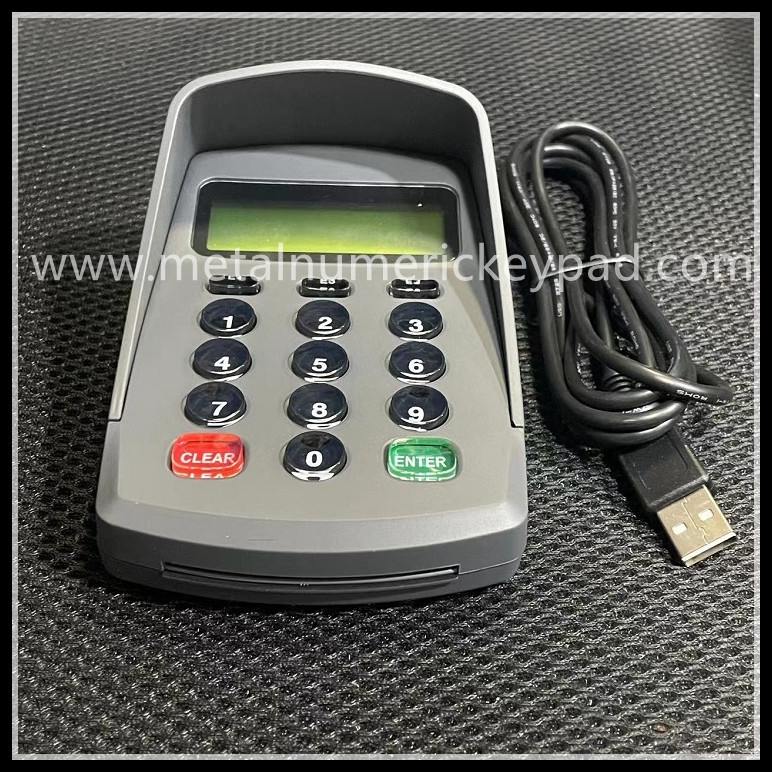

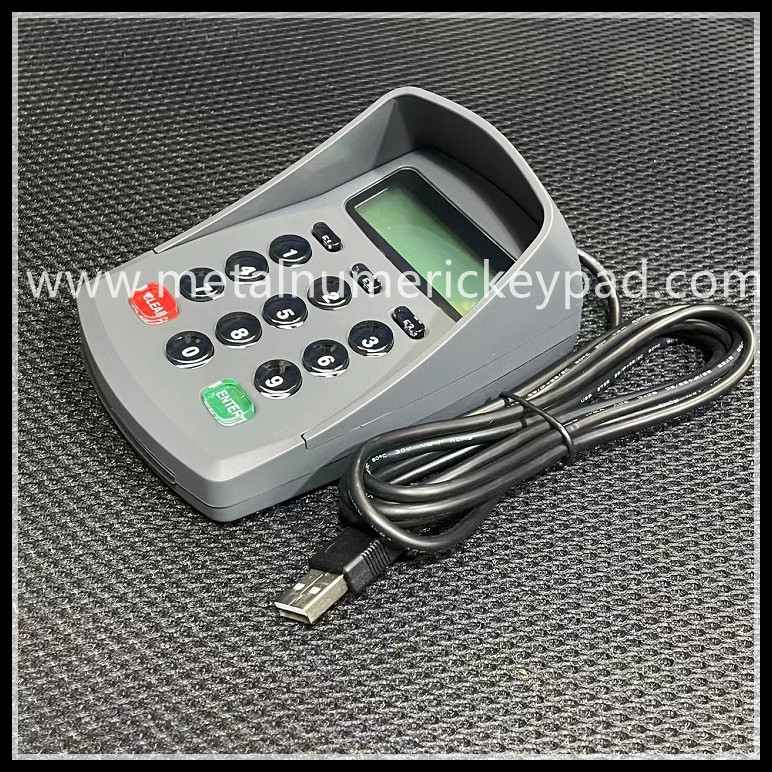

Product Image:

FAQ

Q1) Since we are working together for the first time, is payment safe for me?

A: Our company is certified and registered in China and Hong Kong, which will guarantee your product receipt, and we also accept other secure payment methods you want.

Q2) Do you support custom keyboard language and layout?

A: We support free language and layout customization!

Q3) What is your MOQ?

A: First, a sample can be provided for evaluation. For non-custom products, any quantity is welcome here. According to customized products, please contact us for further confirmation.

Q4) What is the delivery time?

A: Bulk order: 2-20 days, depending on the order quantity. Sample: 1 day when in stock, 20 days for custom design.
